BOSCH GENERIC TIMER MODULE

Case Study

Adding Serial Communication Protocol SENT as Softcore to Microcontrollers

challange

Adding an additional communication interface to a microcontroller system often requires usage of another microcontroller and therefore a redesign of the whole hardware. The GTM has the capability to emulate communication interfaces (e.g. SENT, LIN, CAN) and multiplex them to a huge amount of general purpose I/Os. But developing such software-emulated communication interfaces using the GTM takes some effort and such drivers usually need to pass a conformity test.

solution

The CISC GTM IP Softcore library provides AUTOSAR conform drivers with its standardized APIs and the possibility of additional communication interfaces to existing microcontroller systems on-demand. The execution of this software is resource independent of the MCU and available for all high end microcontroller. Already available on the early version 1.5 of the Generic Timer IP module(GTM) from BOSCH, the SAE J2716 SENT protocol has been implemented by CISC as a library module to provide a point-to-point scheme for transmitting signal values from a sensor to a controller. It is intended to allow for transmission of high resolution data with a low system cost and reduced hardware cost compared to traditional solutions.

Challenges for Implementing the SENT Protocol

Implementing serial communication protocols require to address a couple of topics like:

  • Synchronization
  • Data rate detection
  • Bus arbitration
  • High clock variations (e.g. +/-20 % for SENT)
  • Allowed deviation between successive calibration pulses very low (e.g. +/-1.5625 % for SENT)
  • Error recovery

Of course, the Generic Timer IP module (GTM) allows different approaches for the SENT protocol implementation by ensuring accurate multi-input data acquisition and multi-output signal generation in automotive powertrain and active safety applications, or in industrial closed-loop applications.

Efficiency in Implementation

Our implementation allows already in the version 1.5 of the GTM up to 4 parallel SENT channels using one MCS. Our implementation supports:

  • 3 µs clock tick
  • Fast/Slow channel reception
  • FIFO for interrupt messages
  • RAM for polling messages
  • Message diagnostics completely done by MCS

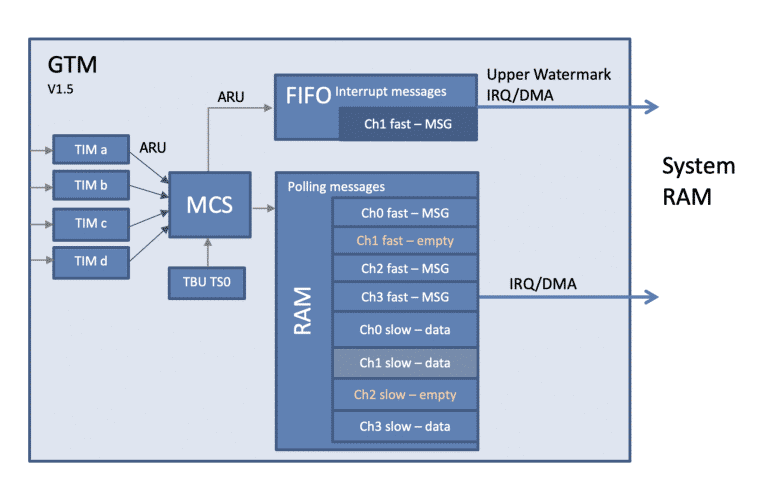

Based on the resources of the GTM version V1.5 we have implemented a solution that is shown in the picture close by.
