NFC Measurement Solution
NFC Xplorer is a Pristine RF Testing Device According to ISO Test Setup
Conformance and
Performance Tests
The CISC NFC Xplorer is a compact, high-quality test system, developed for NFC and HF device measurements including performance and conformance tests. The Hardware unit provides two high-ohm input ports and one 50-ohm output port, which makes the NFC Xplorer a device supporting measurements according ISO with full compensation of DUT influence. The device is capable of communicating with HF RFID cards and NFC devices, and an analyzer of the air interface communication. Signal recording is done in real-time with no limitation of the recording time.
Key Benefits
- High precision
- Fast and easy to use GUI
- Multiple protocols
- Standard and user-defined commands
- Configuration as tag tester for up to 12 A/m
- Configuration as sniffer and reader tester
- Two receivers for pristine support of ISO test setup
Key Features
- Resonance frequency measurements
- Load modulation measurements independence of H-Field
- Full analog testing
- Multiprotocol supports
- ISO/IEC 14443A/B
- ISO/IEC 15693
- ISO/IEC 18092
- ISO/IEC 18000-3M3
Air Interface Standards
- ISO/IEC 14443 Type A
- ISO/IEC 14443 Type B
- ISO/IEC 15693 / ISO/IEC 18000-3
- ISO/IEC 18092 NFC
- EPCglobal HF Class1 Gen2
Test Standards
- ISO/IEC 10373-6
- ISO/IEC 10373-7
- ISO/IEC 18047-3
Reader tester / Communication analysis
The NFC Xplorer may be used as a sniffer to track and evaluate communication between readers and tags/cards.NFC / HF RFID tag, label and card tester
The NFC Xplorer may also be used as a tag tester with external amplifer.NFC and HF RFID tag testing

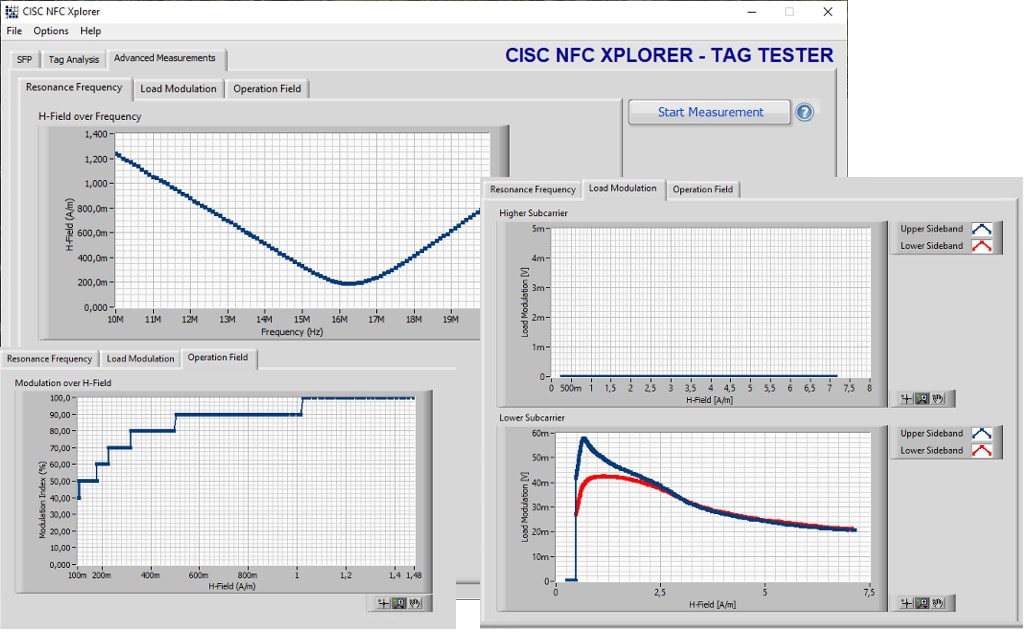

NFC Xplorer covers the key elements of tag testing. This includes the measurement of the minimum H-field over frequency resulting in the active or loaded resonance frequency. Furthermore, it provides a quick and effective method of measuring the load modulation strength in dependence of the H-field.
